OUR MACHINES

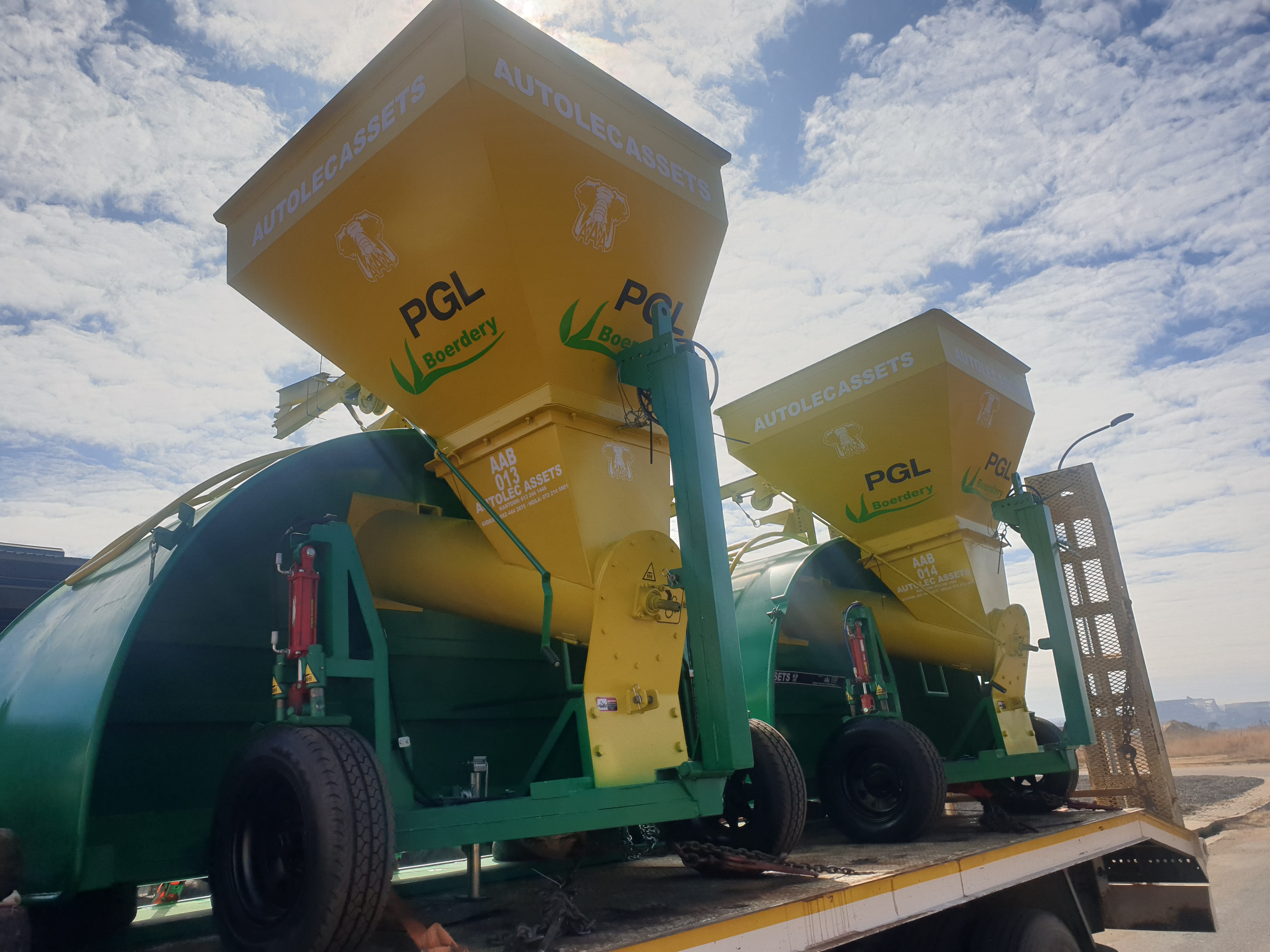

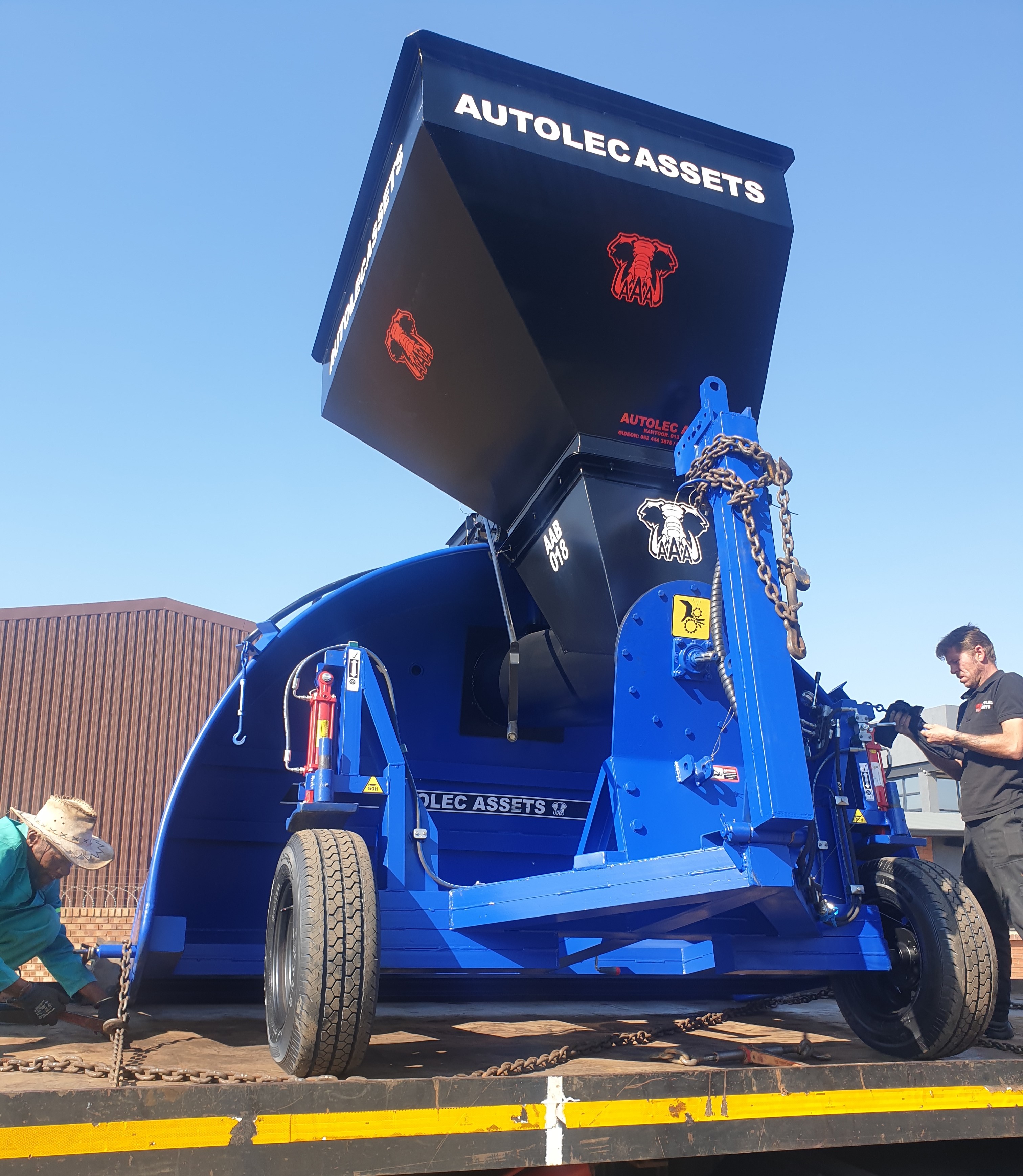

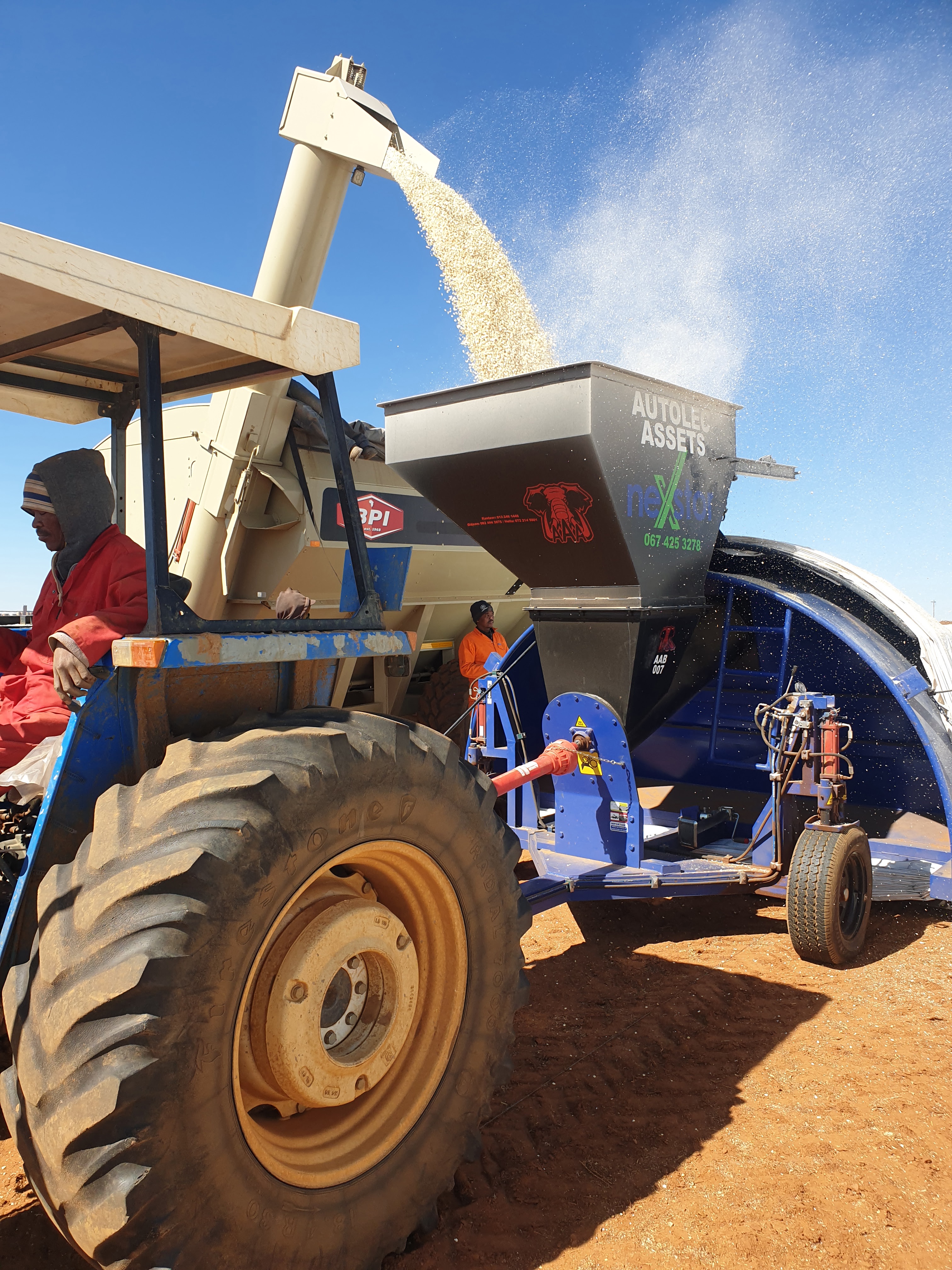

Baggers
Our baggers operate directly from the tractor's hydraulic system with a standard 2-pin hydraulic control and require a standard 540RPM PTO drive to operate.
Our streamlined design uses only two easily-accessible bearings that need to be maintained.
Each brake can be engaged individually for maximum control.
SPECIFICATIONS
| Item | Specification |
|---|---|
| Pipe | 400mm X 4.5mm Seamless |
| Wheels | 15" 6-hole |
| Loading Capacity | 150-200t/h |
| Brake System | Closed Hydraulic System |
| PTO | 1.8m Series 6 |
| PTO Input | 540PRM |

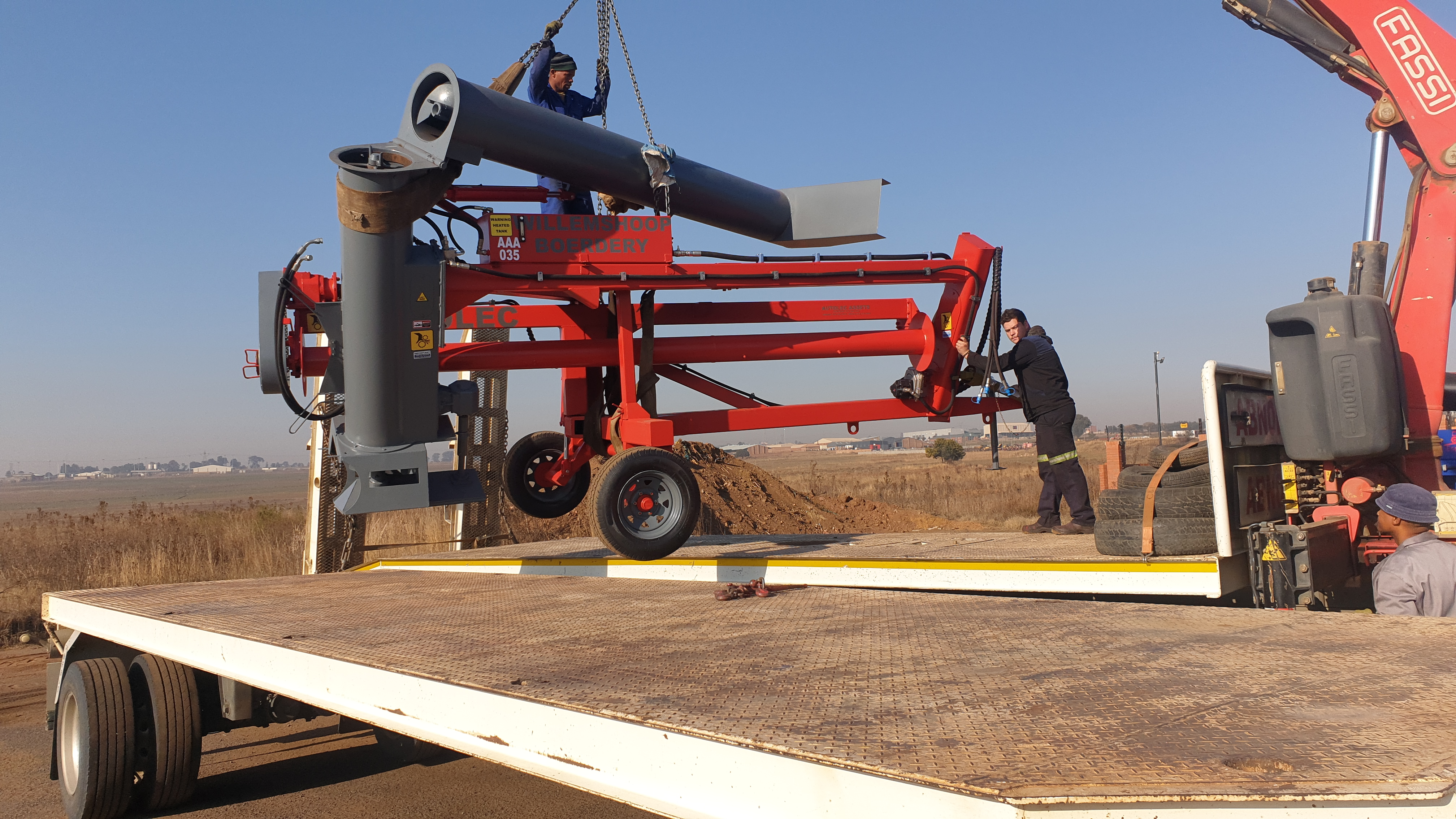

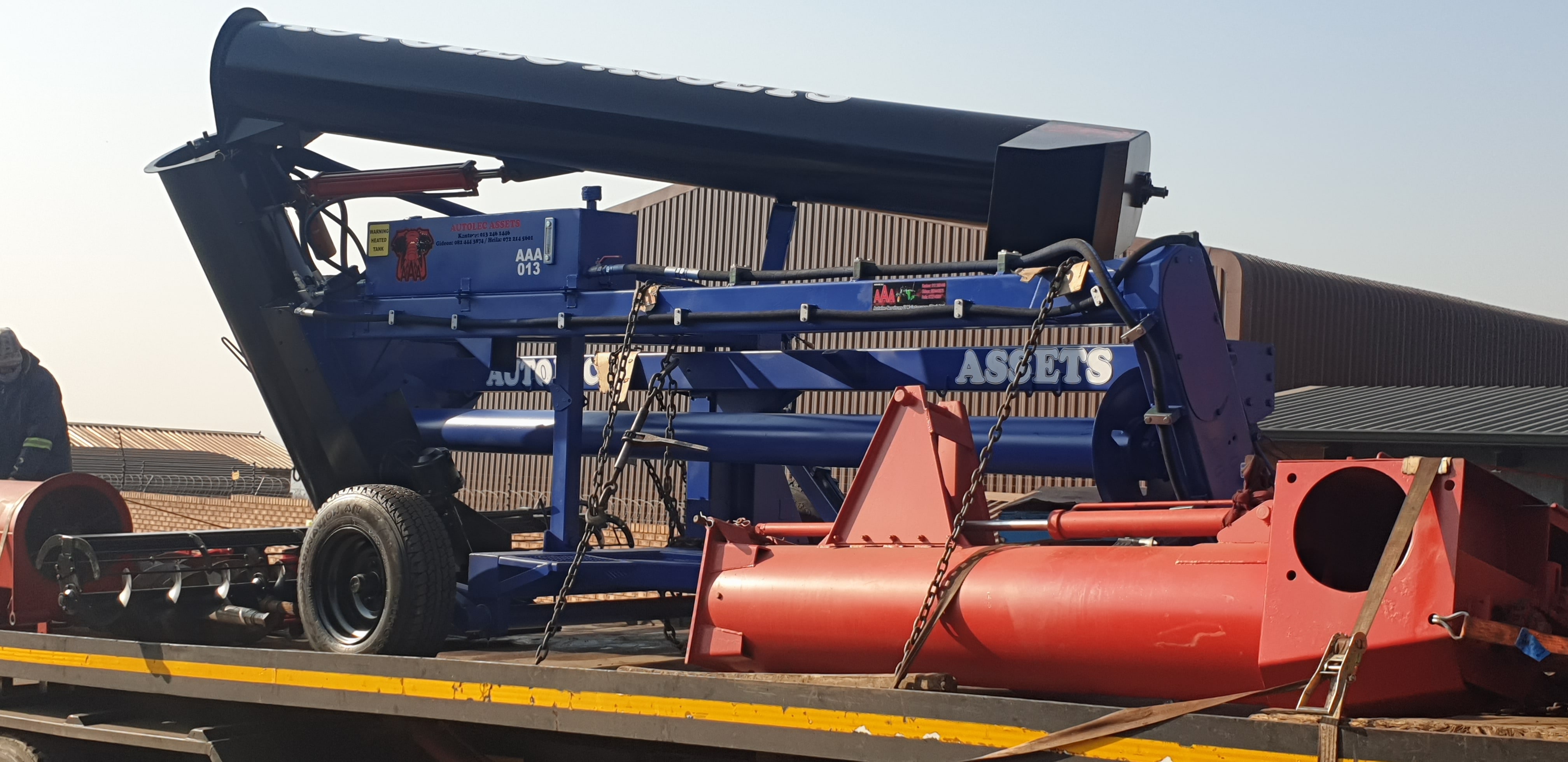

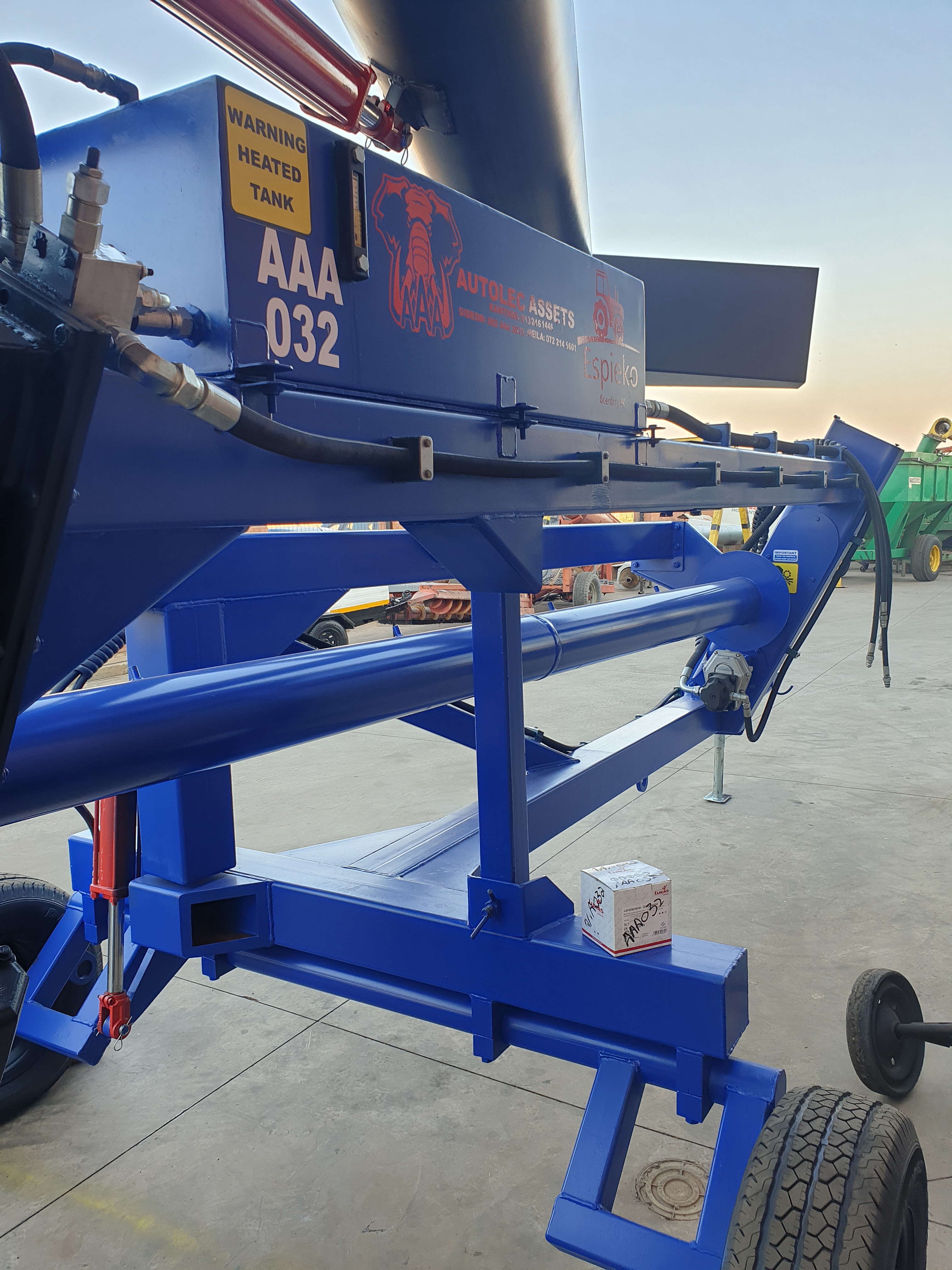

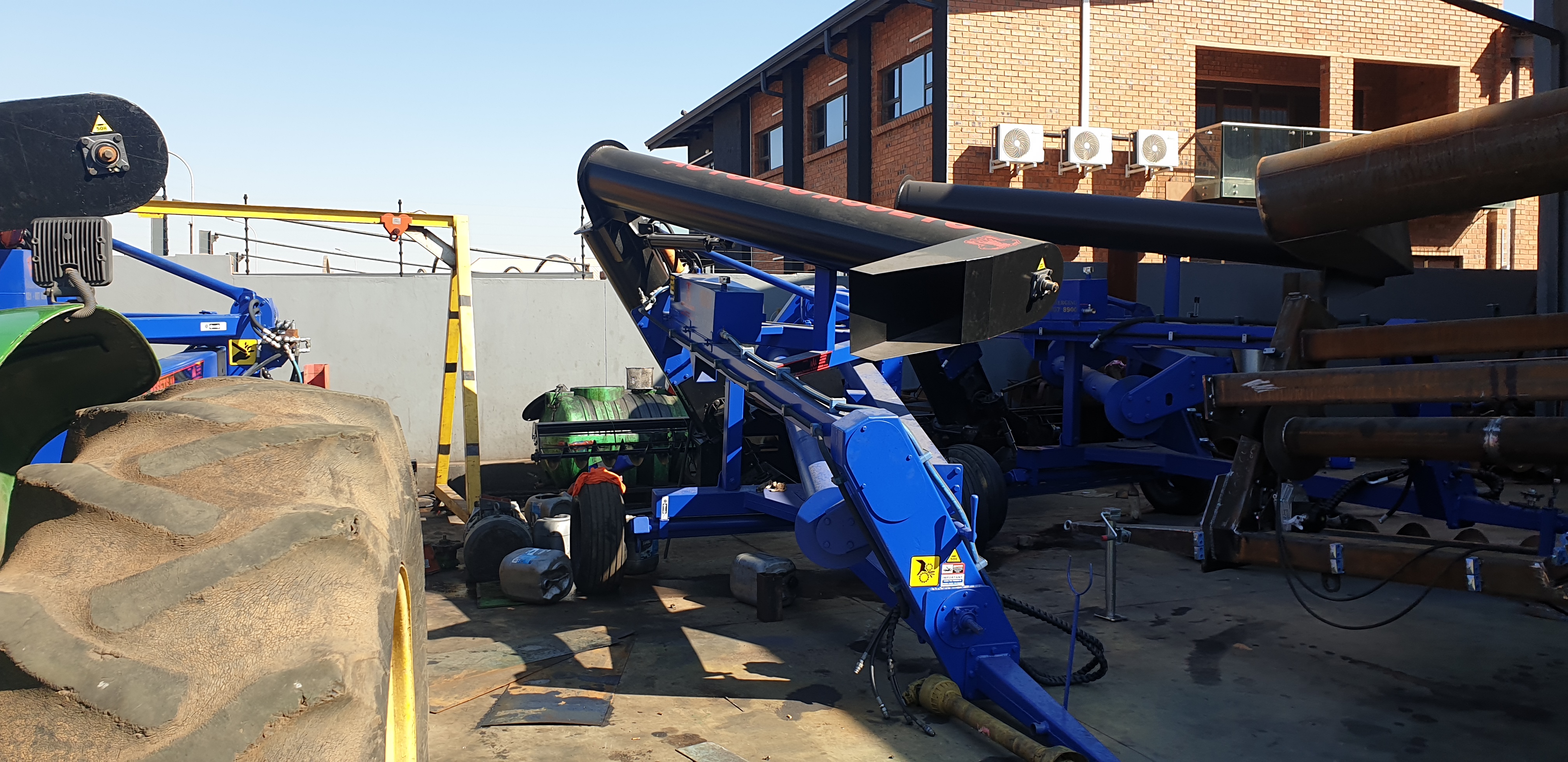

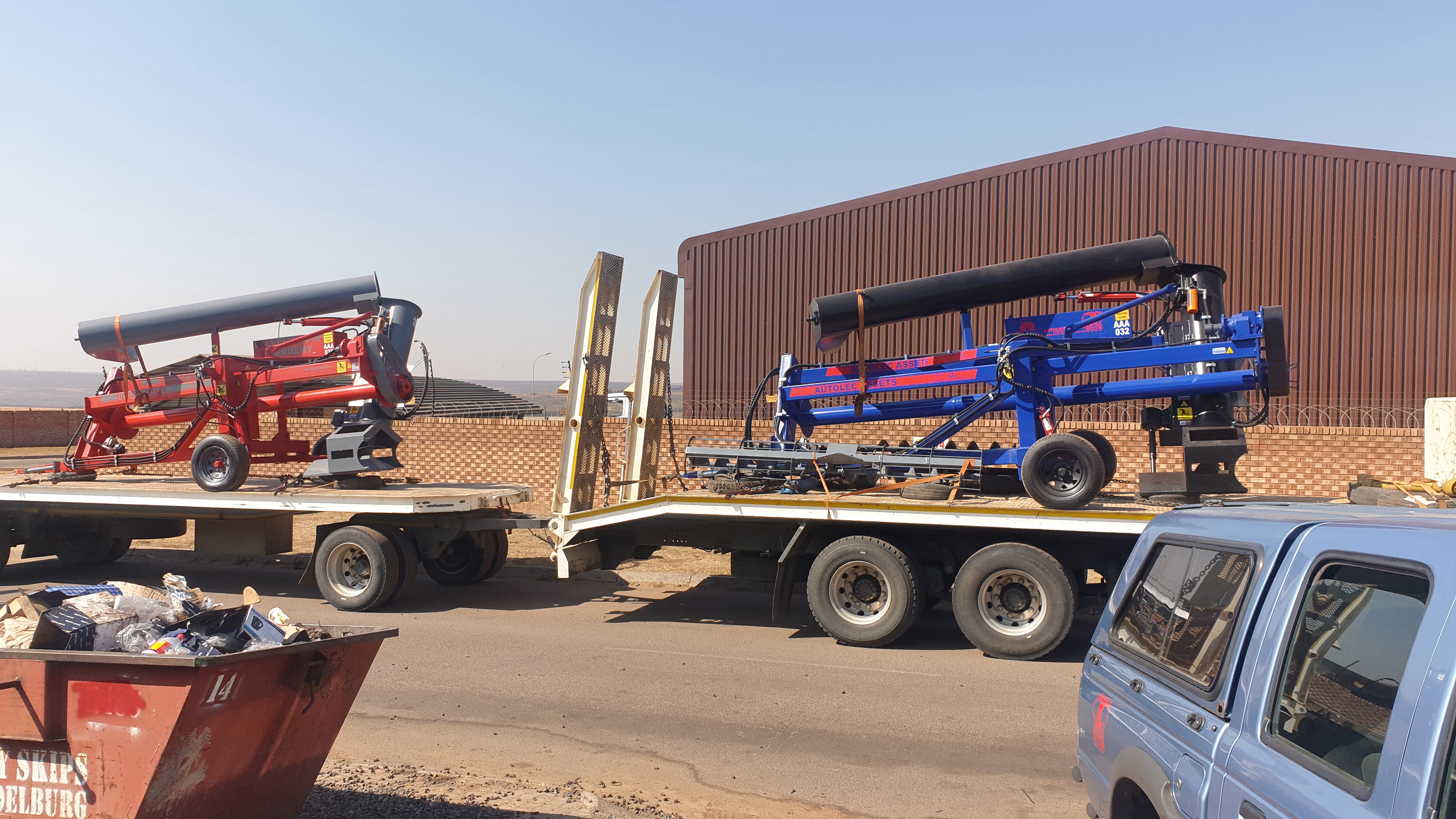

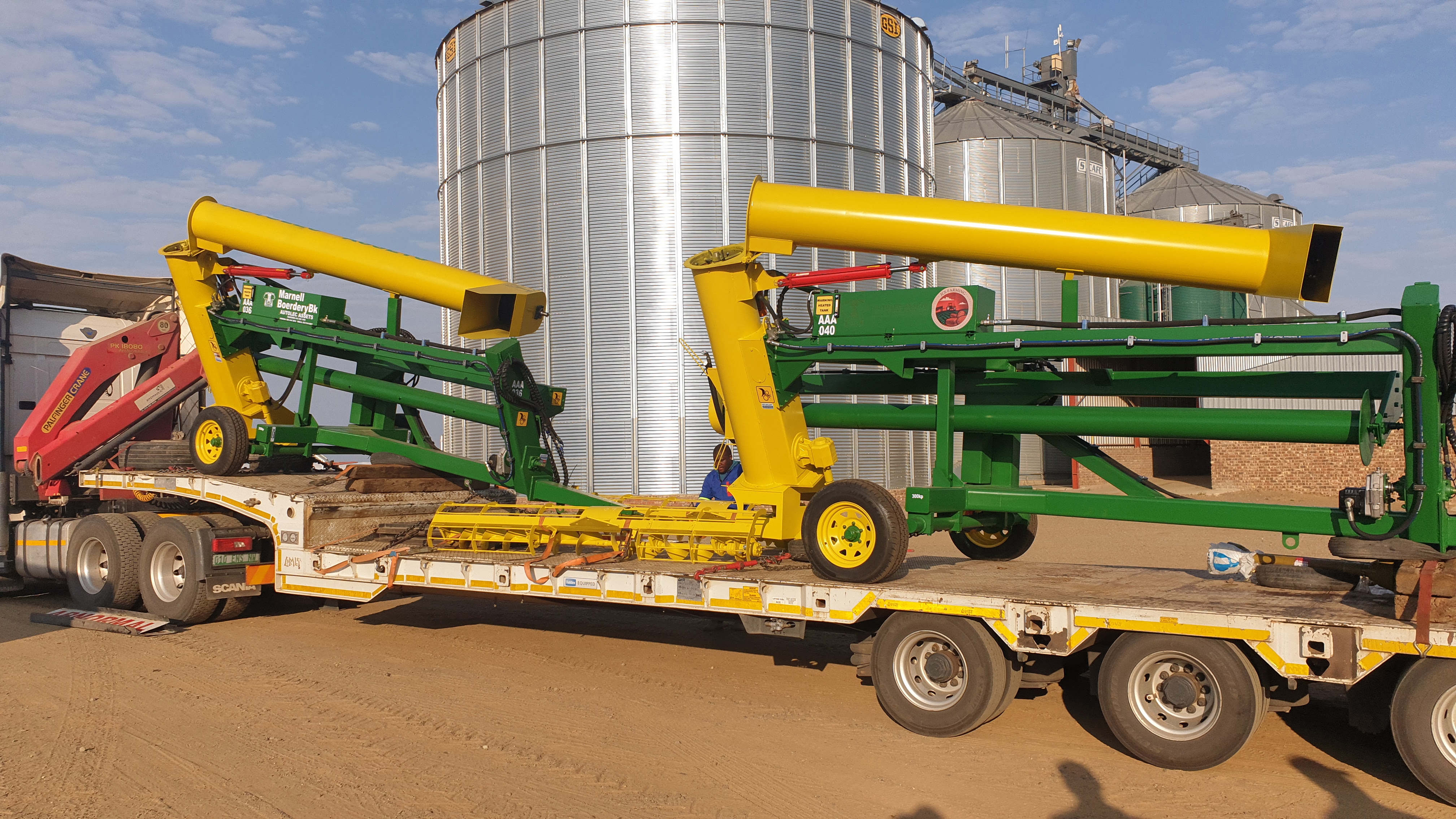

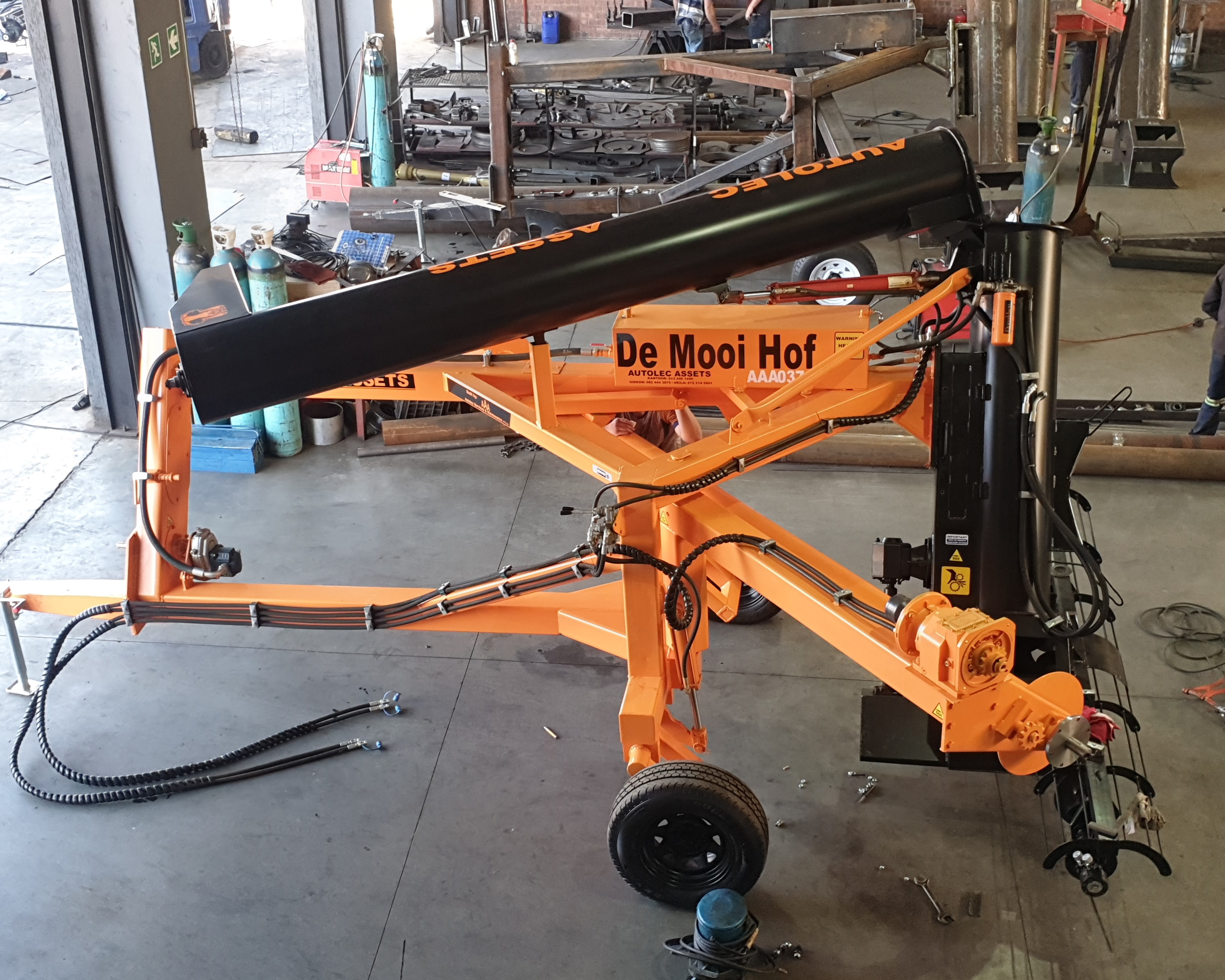

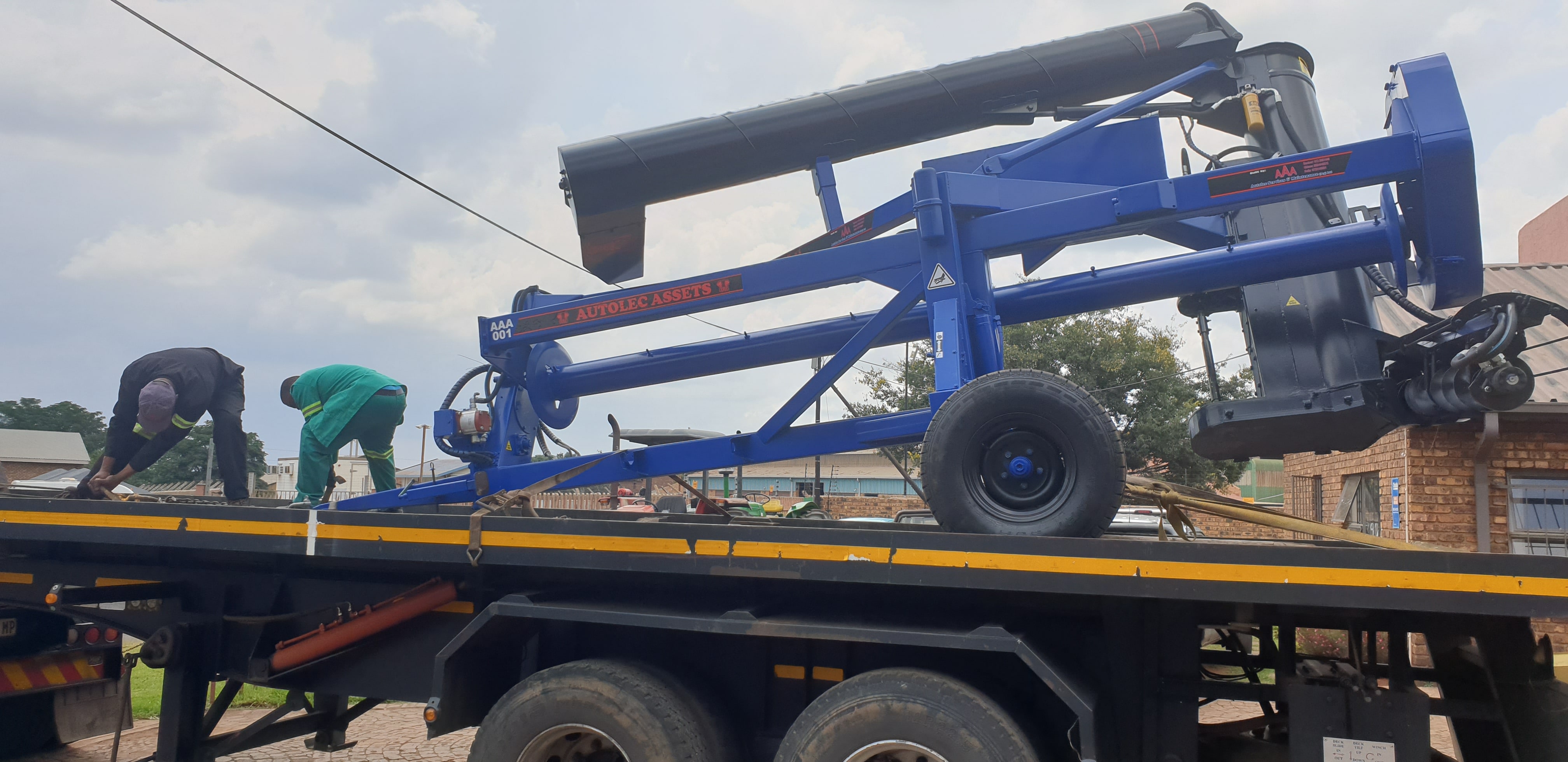

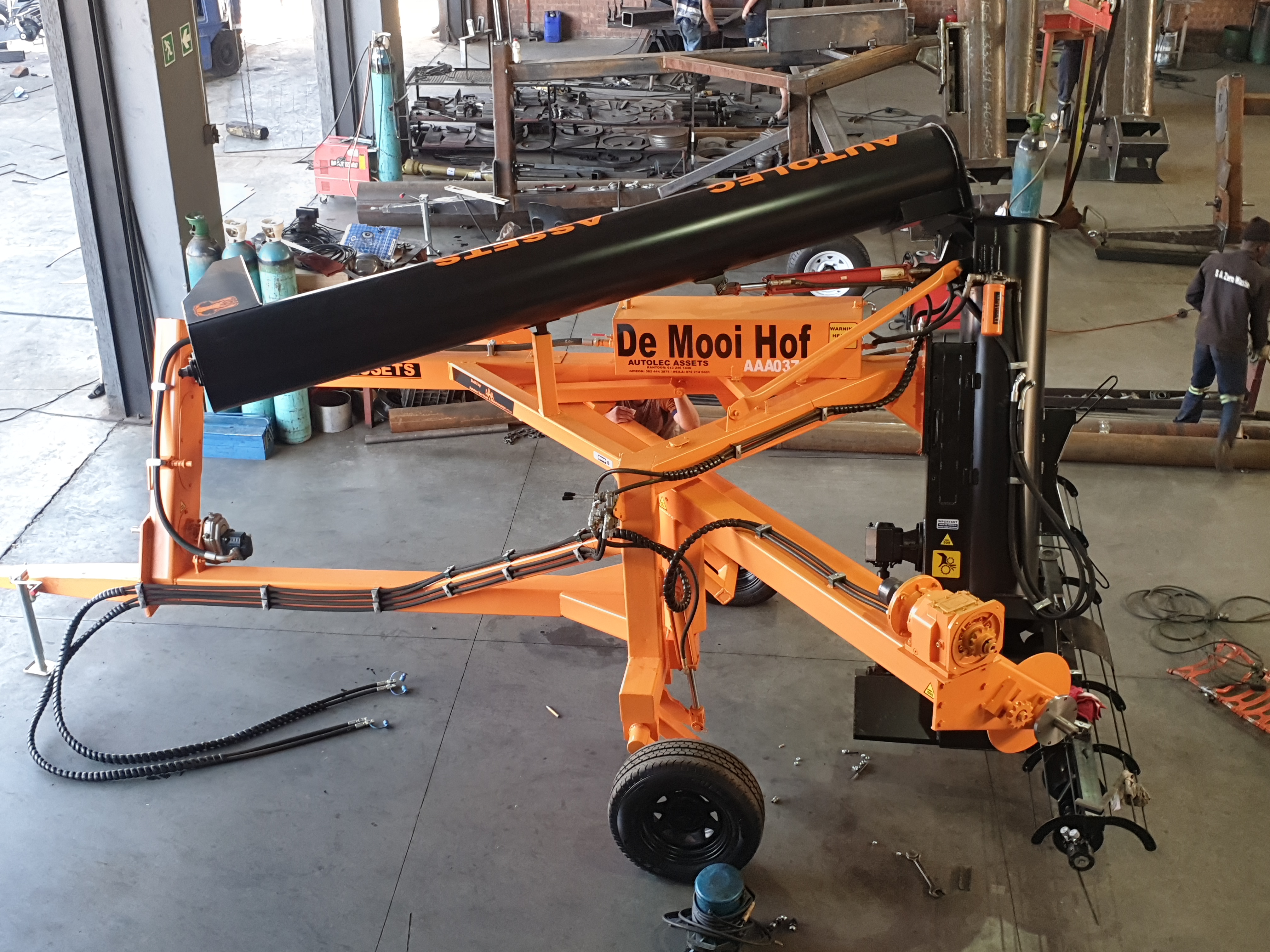

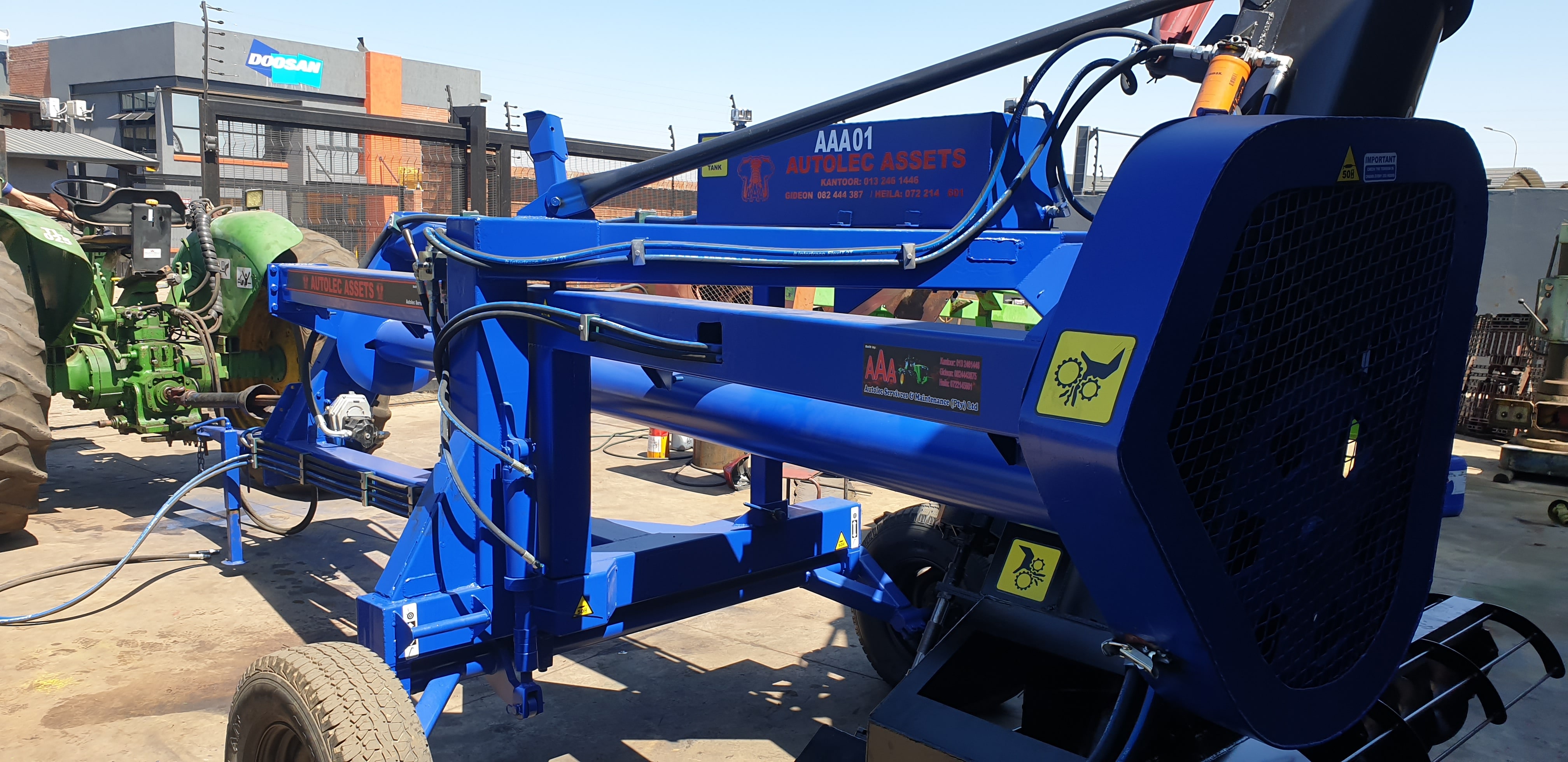

De-baggers

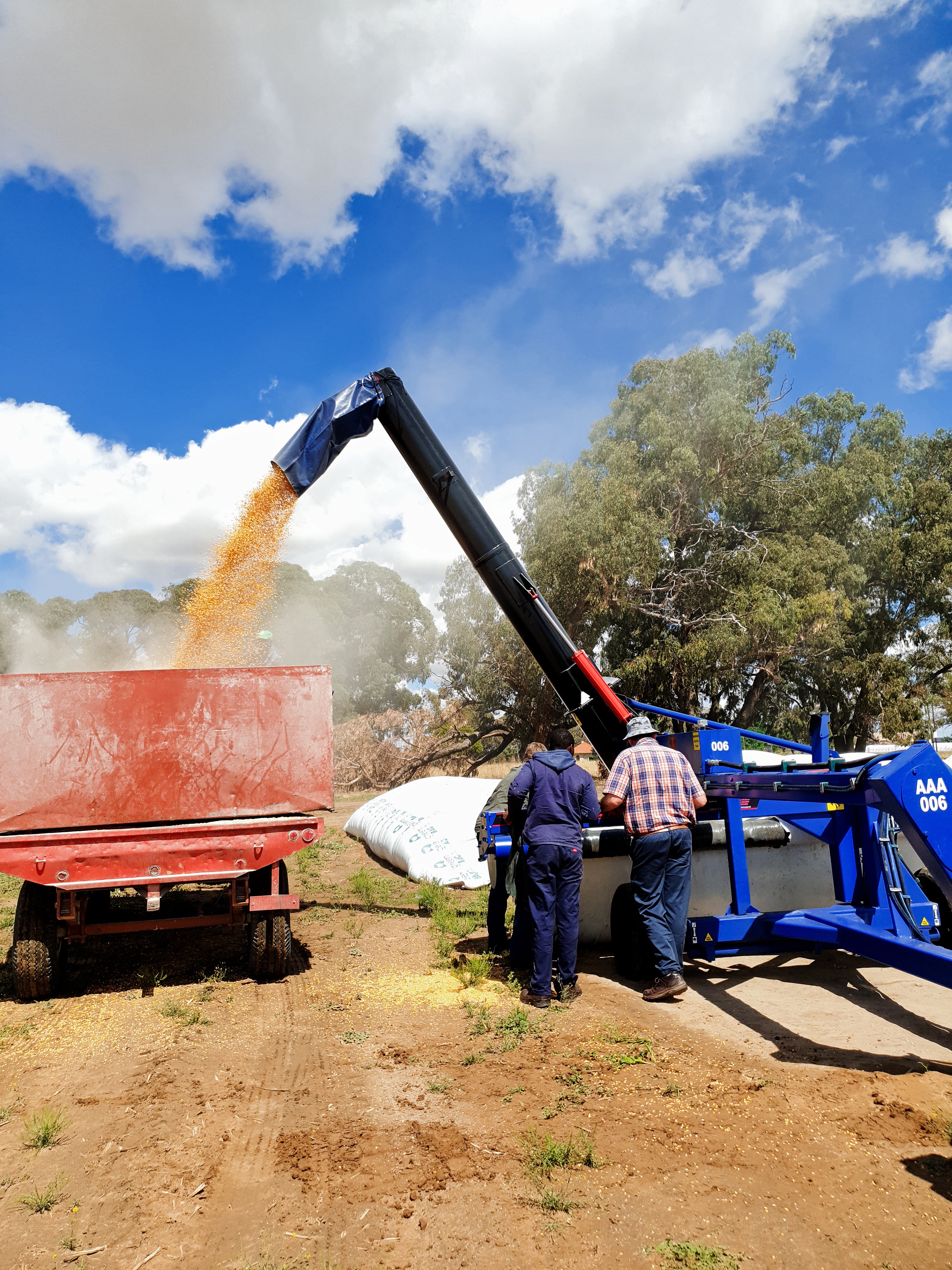

Our de-baggers boast tested capacities of 160 to 200 tonnes per hour during optimal site conditions.
They can be operated with any small to medium sized tractor with a 2-lever hydraulic valve bank and 4 female hydraulic couplers.
The rear drive runs with a split shaft for easy maintenance and all sprockets have taper locks to ease replacement and reduce downtime. All components are in metric sizes and are easily sourced.
At least three people are needed to operate the machine, namely:
- A tractor operator
- A de-bagger operator
- A load controller
SPECIFICATIONS
| Item | Specification |
|---|---|
| PTO Input | 540RPM |
| Gearbox | 90" 60HP |
| Pipes | 405mm OD X 4.5mm |
| Chains | 16B1 |
| Motor Capacity | 32KW |
